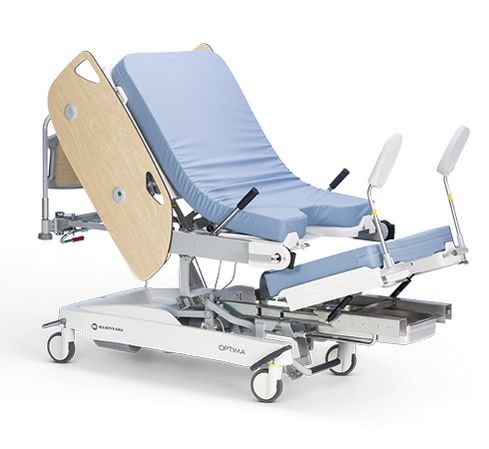

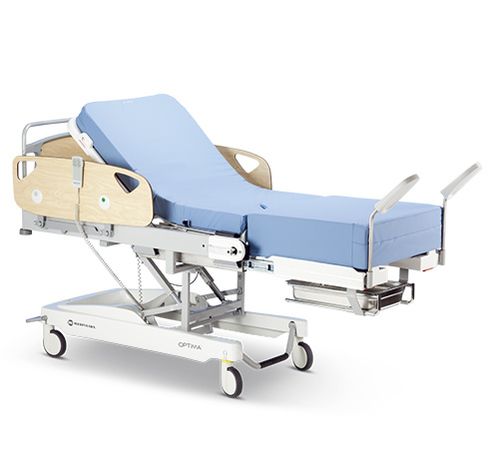

Merivaara Optima Birthing Bed
A popular and safe birthing bed with versatile adjustments
Main features:

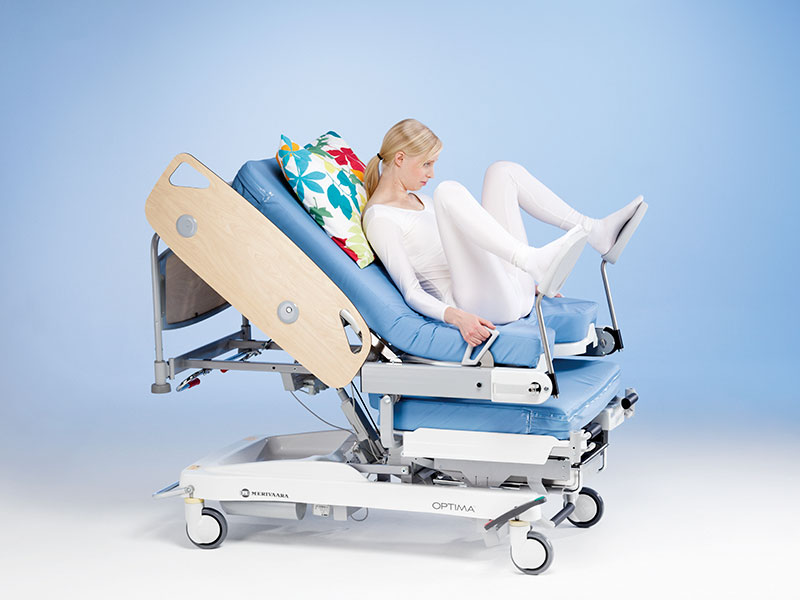

1. Enables multiple safe delivery positions
2. The midwife can easily access the mother from different positions
3. Three different Optima models for different needs
About
Optima birthing bed family offers safe, comfortable and ergonomic childbirth during all stages of labour and also when special medical attention is required. The renewed Optima bed has been designed with the mother, midwife and obstetrician in mind. We have focused particularlyon ergonomics, safety and mobility to help create a better environment for both the family and health care staff.
Multiple delivery positions in a single unit affords a greater level of comfort for the mother. The midwife can easily access the mother from different positions thus improving ergonomics and safety. Furthermore, the bed features electric or manual Trendelenburg and manual back section quick release for enhanced safety. Clear frame construction enables easy cleaning and high level of hygiene.. Optima birthing bed can also be used for transportation within the hospital.
The Range
4-motor: electric height, back section, leg section and Trendelenburg adjustment. Leg section movement in/out and tilting manually. Also manual Trendelenburg and quick release for back section
2-motor: electric height and back section adjustment. Leg section movement in/out, Trendelenburg and quick release for back section manually
Hydraulic: hydraulic height adjustment and gas spring assisted adjustment of back section. Leg section movement in/out, Trendelenburg and quick release for back section manually
Technical standard features:
- Frame color: painted silver
- Central locking
- Push handles for patient
- Bowl 12 litres
- Movable leg section in/out (in 4-motor also tilting)
- Clamps for calf supports
- 2- and 4-motor models include a battery
- Mattress set designed for Optima available

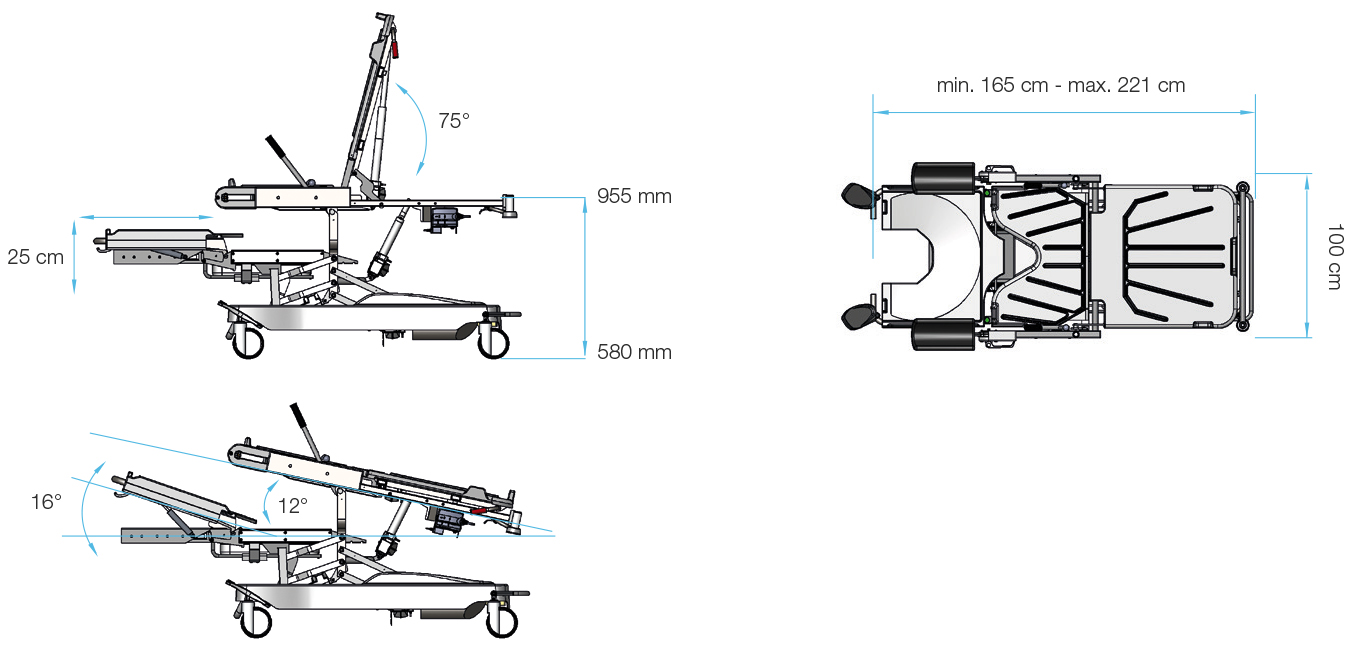

| Model | Hydraulic | 2-motor | 4-motor |
| Total width | 1030 mm | 1030 mm | 1000 mm |
| Patient surface width | 780 mm | 780 mm | 780 mm |
| Total length min-max | 1520 - 2110 mm | 1520 - 2110 mm | 1650 - 2210 mm |
| Patient surface min-max | 1320 - 2010 mm | 1320 - 2010 mm | 1300 - 2210 mm |
| Height adjustment | 570 - 935 mm | 590 - 955 mm | 580 - 955 mm |
| Patient maximum weight | 190 kg | 190 kg | 190 kg |
| Safe Working Load (SWL) | 230 kg | 230 kg | 230 kg |
| Leg section Safe Working Load (SWL) | - | - | 80 kg |
| Trendelenburg | 12° | 12° | 12° |
| Back section adjustment | 0 - 60° | 0 - 70° | 0 - 75° |
| Leg section height adjustment | - | - | 0 - 250 mm |
| Leg section angle adjustment | - | - | 0 - 16° |
| Castors | Central locking 150 mm with braking bar | Central locking 150 mm with braking bar | Central locking 150 mm with braking bar |
| Hand control | No | Yes | Yes |
| Weight | 114 kg | 118 kg | 165 kg |
| Country of manufacture | Finland | Finland | Finland |
| CE marked | Yes | Yes | Yes |
