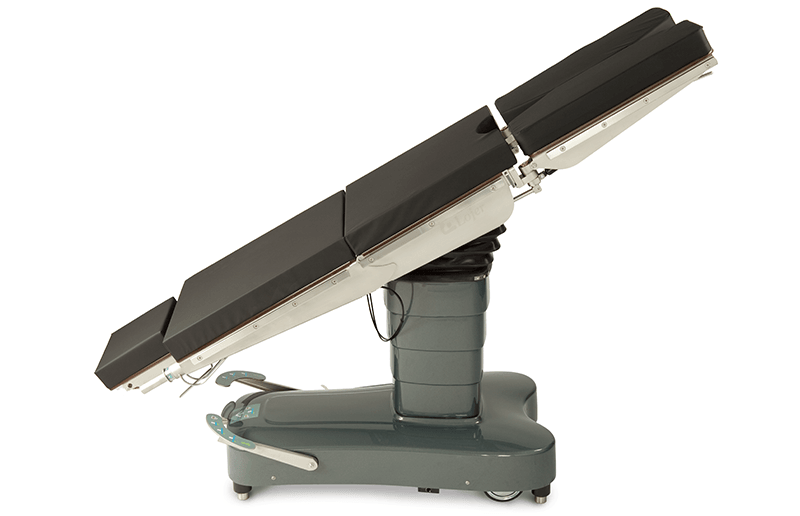

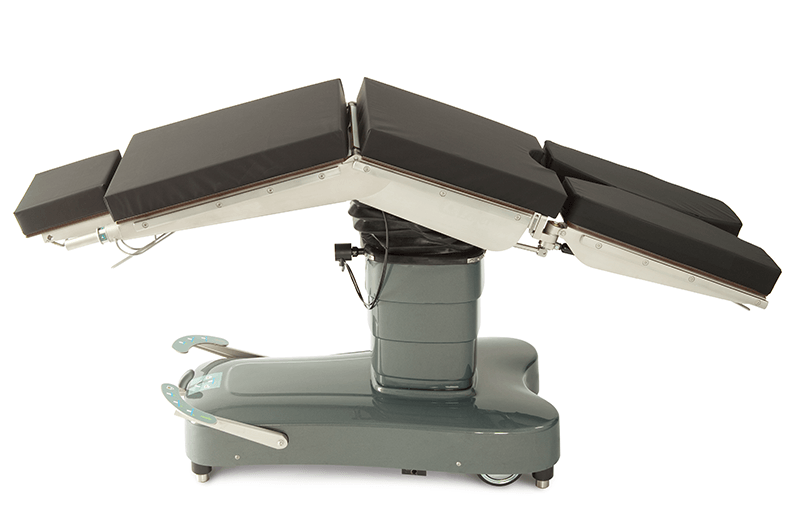

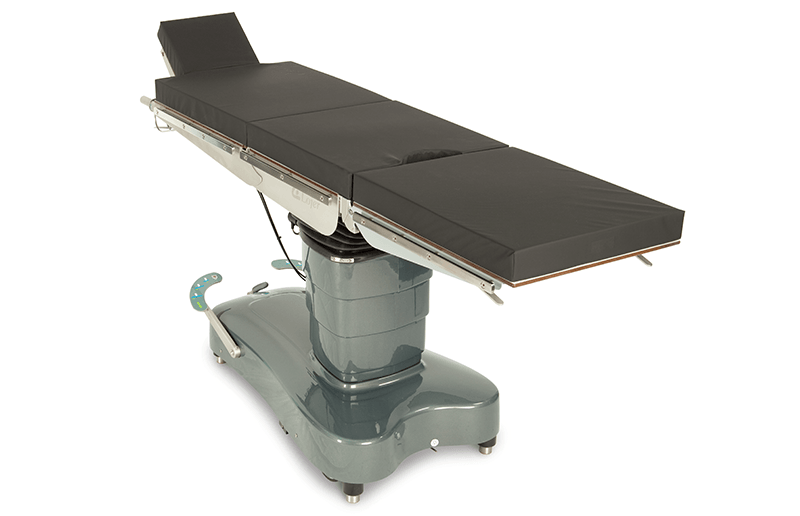

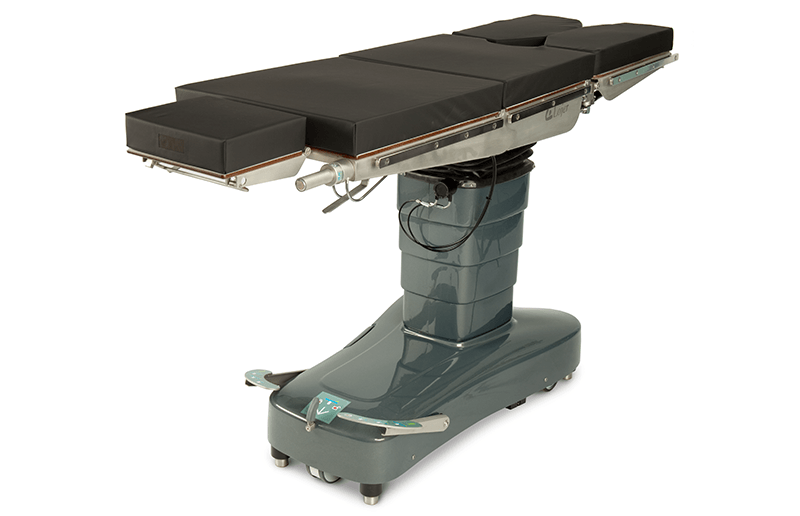

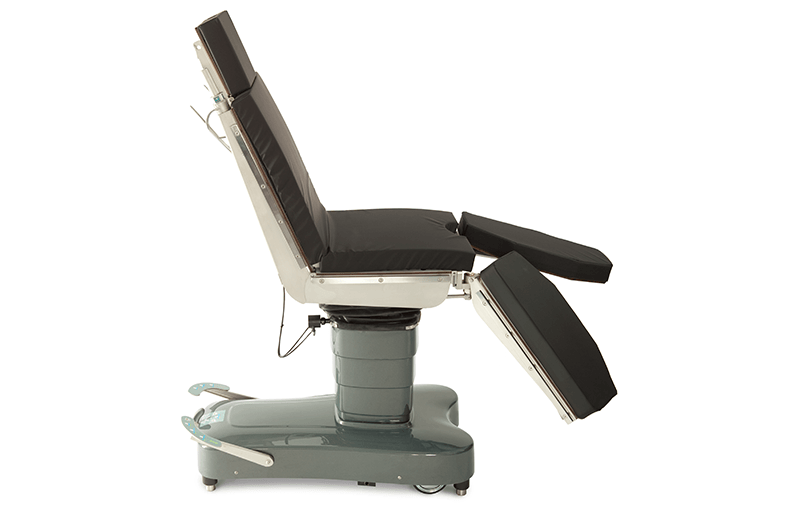

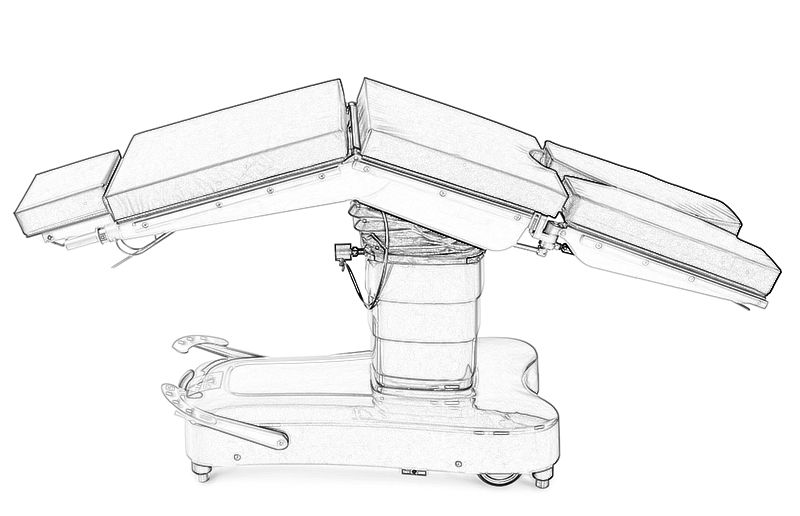

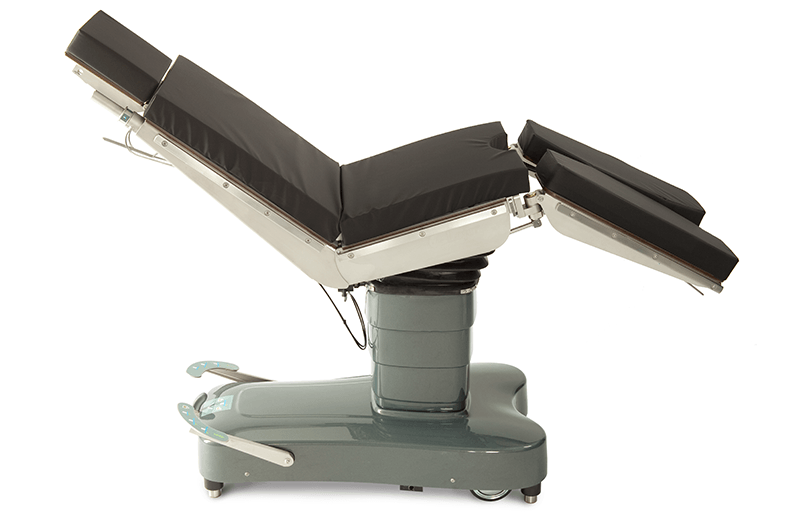

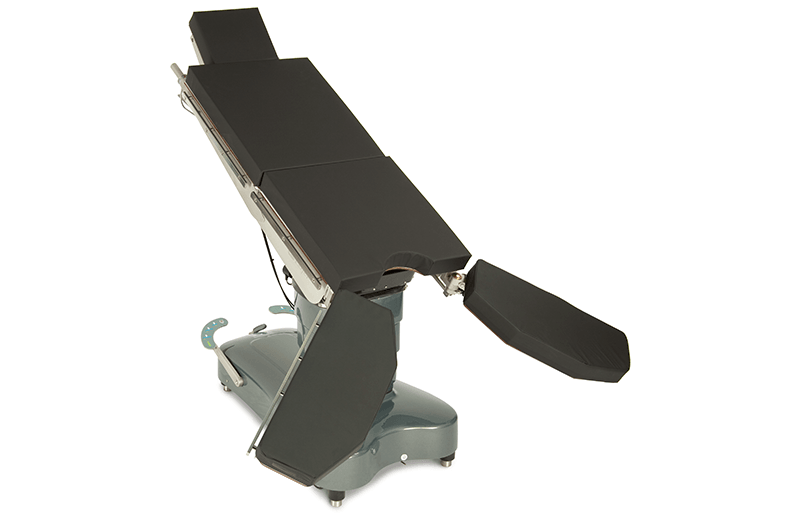

Scandia 310H Hydraulic Operating Table

Hydraulic surgical table with highest functionality

Main features:

1. Ergonomic Scandinavian design with lowest height only 670 mm

2. Foot controlled hydraulic functions with integrated movement selector in the handle

3. Gas spring assisted back and leg sections

The Scandia 310H is a modern hydraulic operating table offering the highest functionality and versatility for universal surgical procedures. The Scandia 310H brings to the market functions that have not been seen in hydraulic tables before. The table features a four section table top including a narrow head section, back section and 1-piece or split leg sections.

Technical standard features:

Four hydraulic floor locks placed in outer corners for stable positioning during operations
High patient weight capacity, easily movable
Optional X-ray cassette tunnel and longitudinal sliding table top for maximum C-arm access
Wide range of accessories

TECHNICAL DATA

Overall length (with head plate)	2170 mm
Width	550 mm (615 mm over the siderails)
Safe working load (SWL) in normal orientation	170 kg
Max lifting capacity	300 kg
Castors	Ø 125 / 150 mm
Table weight	240 kg
Hydraulic height adjustment (without mattresses)	670 - 1030 mm
Hydraulic Trendelenburg / Reverse Trendelenburg	28° / 30°
Hydraulic Lateral tilt (right/left)	20° / 20°
Gas spring assisted back section (up/down)	65° / 30°
Gas spring assisted Leg section (up/down), detachable	16° / 85°
Head section (up/down), detachable	40° / 40°
Flex / Reflex	210° / 120°
CE-marked	Yes
Warranty	2 years
Country of Manufacture	Finland
