Kinos X Treatment Table

Focus on your patients

Main features:

1. Can be used in prone, supine and sitting positions

2. Sturdy construction that can handle even the heaviest patients

3. Foot bar adjustment leaves hands free

Illustration of Plootu Fennica Honorable mention 2024 on Insustrial category as sheet metal product

Top-notch quality

Lojer has been designing and manufacturing products for over 100 years. With over 300,000 medical devices manufactured, we know how to build a safe and durable quality-products.

We've done a lot of testing and designing so that you can work stress-free. The Kinos X Treatment table has passed all the medical device regulation tests performed by an external testing laboratory.

Functional design

We've designed the Kinos X with practitioners in mind, which is why it has a wide height adjustment range, making it easy to adjust for different needs. And with its sturdy construction, you can feel confident that it can handle even the heaviest patients. The back section (only X5) and height of the table are hygienically adjusted with a foot bar, leaving your hands free to help and support the patient.

The Kinos X has a completely new feature that allows it to be electrically raised on castors, making cleaning a breeze.

Environmentally friendly solutions

We want our customers to be the proud owners of their equipment. The Nordic steel we use is the most sustainable steel globally - with first fossil-free steel projects in the world. Lojer factories are running on renewable electricity and geothermal energy.

The paint we use is wear and corrosion-resistant, but also antimicrobial, destroying viruses and bacteria. The upholstery material, Future, is antimicrobial by ISO-certification.

The range

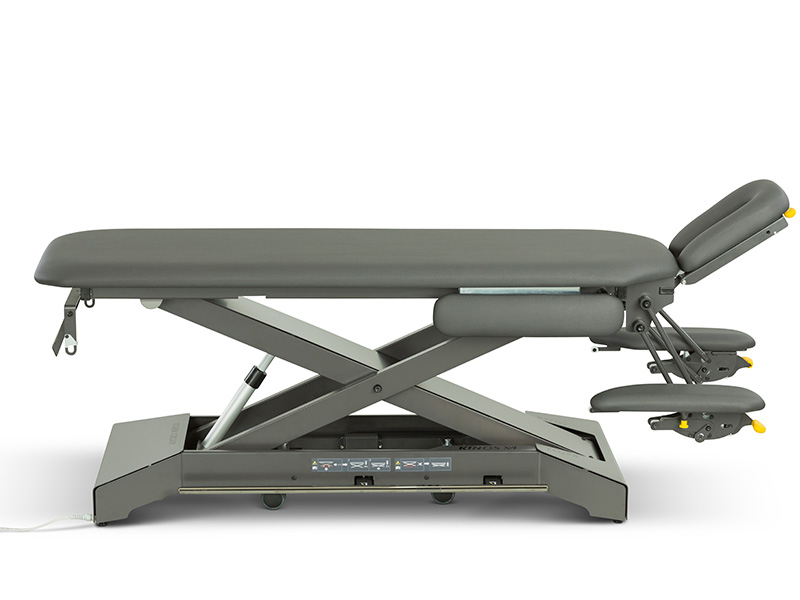

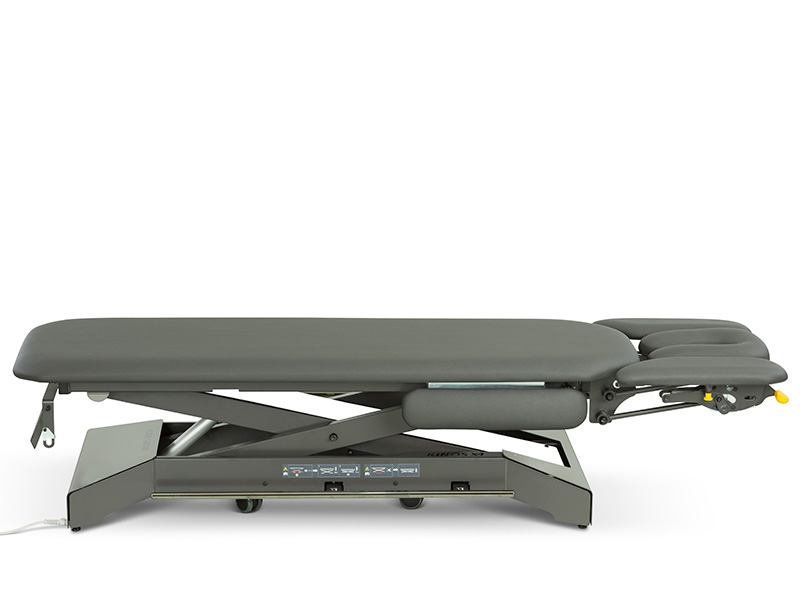

Kinos X4 has a 55 cm wide one-piece table-top with side supports. The height of the table is hygienically adjusted with a foot bar on both sides of the table.

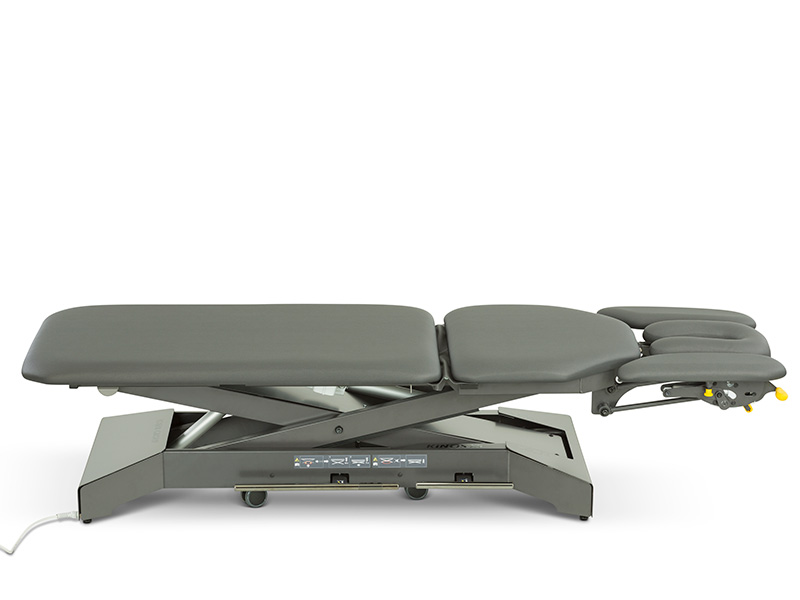

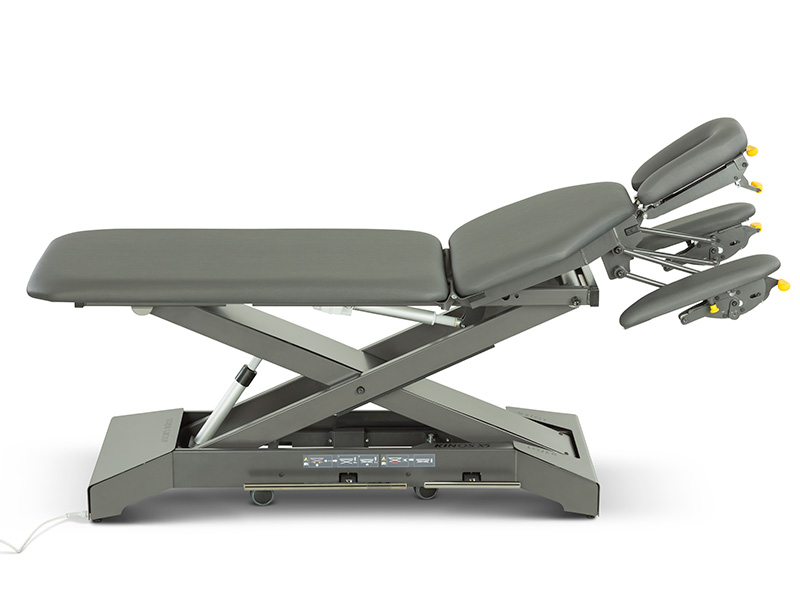

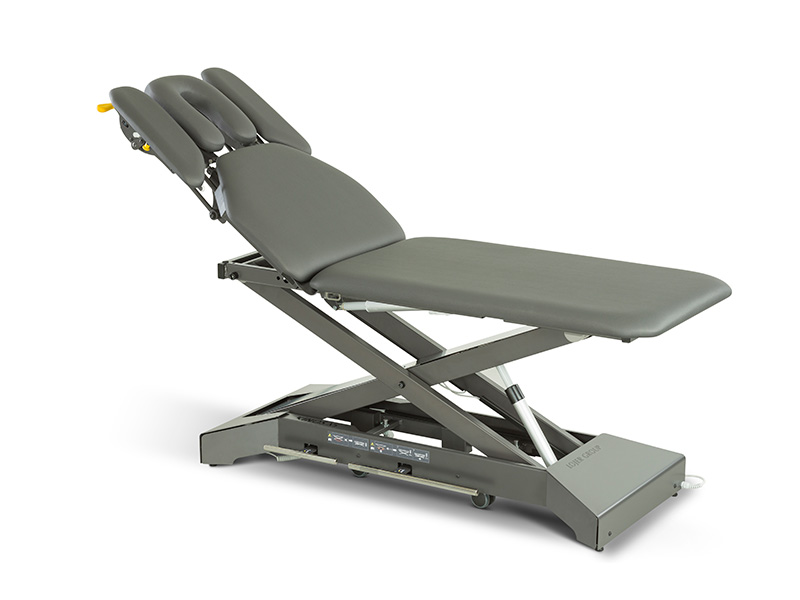

Kinos X5 has a 65 cm wide two-piece table-top with back section adjustment. The back section and height of the table are hygienically adjusted with foot bars on both sides of the table.

Technical standard features:

Kinos X4

Stock model for fast delivery
One-piece table-top
Table-top width 55 cm, length 203 cm
Hand supports (gas spring assisted)
Side supports
U-model head section (gas spring assisted)
Paper roll holder
Upholstery material Future, color Carbon
Frame metal color Carbon
One long height adjustment bar on both sides of the table
Electric lifting on castors
Paper roll holder

Kinos X5

Stock model for fast delivery
Two-piece table-top
Table-top width 65 cm, length 203 cm
Back section adjustment
Hand supports (gas spring assisted)
U-model head section (gas spring assisted)
Upholstery material Future, color Carbon
Frame metal color Carbon
Two height adjustment bars on both sides of the table for height and back section
Electric lifting on castors
Moulded plug (for head section)

TECHNICAL DATA

Model	X4	X5
Total width	55 cm	65 cm
Patient surface width	55 cm	65 cm
Total length	203 cm	203 cm
Patient surface length	203 cm	203 cm
Total weight	98 kg	109 kg
Height adjustment	46 - 95 cm	46 - 95 cm
Back section length	-	52 cm (and the rest 112 cm)
Back section adjustment	-	0 - 70°, electrical
Head section adjustment	-90° ... +35°	90° ... +35°
Castors	Ø65 mm, electric lifting	Ø65 mm, electric lifting
Other standard features	• Safety feature: auto-lifting in emergency situations • Safety feature: table will be automatically locked after 120 minutes if not in use • Safety feature: motors do not pull, but lower using gravity • Arm rests • Side supports • One long height adjustment bar on both sides of the table • Electric lifting on castors	• Safety feature: auto-lifting in emergency situations • Safety feature: table will be automatically locked after 120 minutes if not in use • Safety feature: motors do not pull, but lower using gravity • Arm rests • Two height adjustment bars on both sides of the table for height and back section • Electric lifting on castors • Moulded plug for head section
Upholstery	Material Future, color Carbon	Material Future, color Carbon
Frame color	Carbon	Carbon
Safe working load (SWL)	210 kg	210 kg
Electric system	24V, IPX6	24V, IPX6
CE-Marking	Yes, MDR	Yes, MDR
Warranty	2 years	2 years
Country of Manufacture	Finland	Finland
