4040X General Examination Table

A new, versatile general examination table

The all-new 4040X general examination table is suitable for general examinations in different healthcare facilities

Main features:

1. Market-leading height adjustment range 40 – 95 cm

2. Two-piece hands-free adjustment bar (for height and back section) and simple frame construction enable high level of hygiene

3. New motors lower using gravity, improving safety for patients and users

About

Its patented construction and extremely low minimum height mean that even children and elderly patients are able to get up onto the table with ease. The new motor technology allows for back section height adjustment electrically or manually, if required. The widest height adjustment range on the market and a high load capacity enable comfortable, efficient working for care providers and increase safety when examining or moving patients.

A two-piece hands-free height adjustment bar is available as an option, enabling the table height and back section to be adjusted from both sides of the table by foot.

The Range

There's also a hydraulic 4040XH-model available, in which the height-adjustment is done with foot pedal and the back section adjustment is assisted by gas spring mechanism.

Technical standard features:

Electric height adjustment with hand control
Back section height adjustment electrically or manually, if required
Paper roll stand and cutter
Adapter for fitting an IV-stand (6 possible fitting positions)
Individually locking castors ø125mm
Multiple upholstery colors and several high-quality upholstery materials available

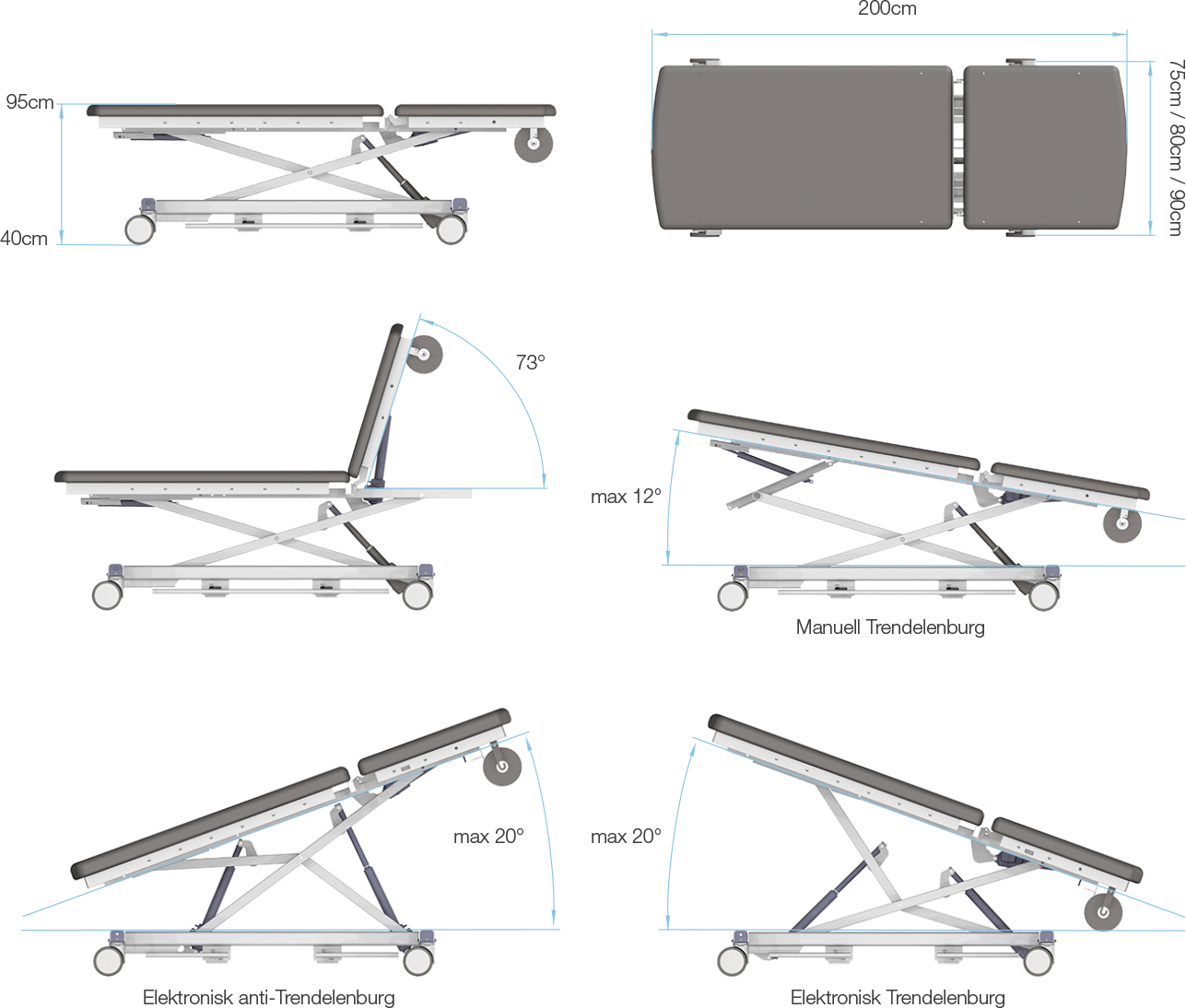

TECHNICAL DATA

Patient surface width	70 cm (80 / 90 cm optional)
Total width	75 cm (80 / 90 cm in options)
Patient surface length	200 cm
Total length	200 cm
Total weight	108 kg
Height adjustment	40 - 95 cm
Back section length	70 cm
Back section adjustment	73°
Trendelenburg adjustment (optional)	max. 12°
Castors	Ø125 mm (twin castors optional)
Safe working load (SWL)	210 kg
Electric system	24V
CE-marking	Yes
Warranty	2 years
Country of Manufacture	Finland

TECHNICAL IMAGES

ACCESSORIES

DOWNLOADS

MATERIAL OPTIONS

Future

Featuring a slightly pearlescent finish, the stylish Future is an environmentally friendly and fire safety tested upholstery material in the Lojer upholstery range. Its antibacterial, antimicrobial and mold-proofing properties make Future an ideal material for demanding applications. The material features cutting-edge coating technology that remains on the surface and does not wear out even when cleaned. At the same time it prevents the growth of bacteria (which causes smells and stains), prolonging the service life of the upholstered parts.

This extremely durable material is 3 to 6 times more durable than traditional faux leather materials (Martindale over 300 000 cycles) and highly resistant to deterioration such as cracking, splitting, and loss of flexibility. It is also waterproof and fade-resistant.

The surface coating, durability and performance of Future upholstery material have been designed specifically for the healthcare industry, where bacteria, abrasions and stains are particularly challenging. The material is easy to clean and must be cleaned frequently. It fulfills REACH chemicals regulation requirements, which proves a high emphasis level of health and environment protection.

Material composition:

Topcoat 81% vinyl
Backing 19% polyester

Colour options

Standard: Silver

Standard: Falls

Standard: Tomato

Standard: Beach

Carbon

Space

Pearl

Titanium

Onyx

Saphire

Lagoon

Pistachio

Plum

Sunrise

Technical features

Cleaning

Suitable disinfectant

Nature

Durable, high quality Nature represents a new generation of environmentally friendly materials. The material is in accordance with the Oeko-Tex standard and therefore does not include any heavy metals or phthalates. Thanks to its biocompatibility (EN ISO 10993-5 + 10) the material is safe for the skin. The new Nature feels very comfortable and warmer on the skin than regular artificial leather. It is especially suitable for medical and physiotherapy products.

Material composition:

Approx. 50% Renewable raw materials
Approx. 30% Natural based raw materials
Approx. 20% Raw material based on crude oil

Colour options

Night

Sea

Stone

Haze

Sand

Technical features

Cleaning

Suitable disinfectants

Skai Conductive

Skai Conductive is high-quality leather-like material. Both appearance and feel imitate real leather. In addition, the material is electrically conductive and its use is recommended in medical products, in which current spikes caused by abrasive electricity, ie. electrostatic discharges should be avoided. These so-called spark discharges could damage sensitive electronic devices or interfere with tests (f.ex.heart function tests).

Material composition:
