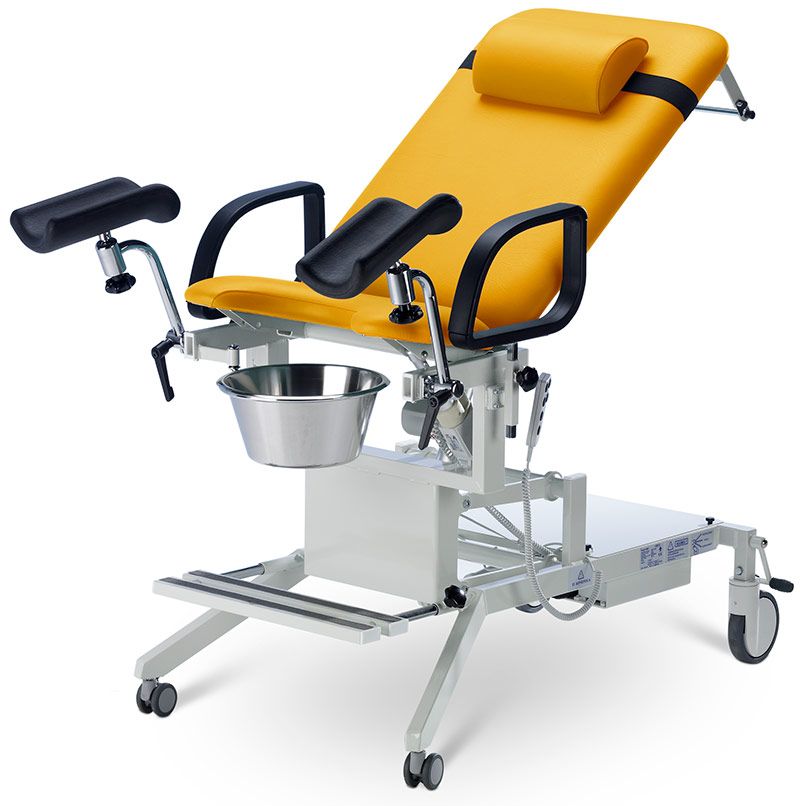

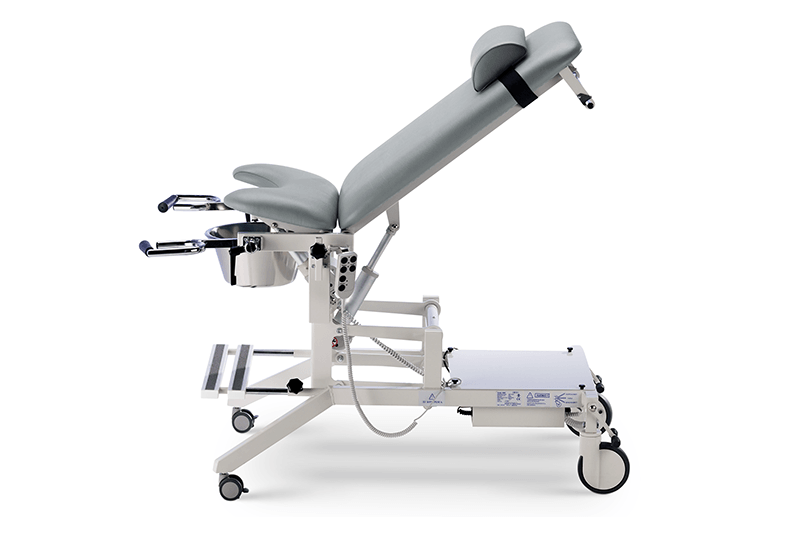

Afia 4060 Gynaecological Examination Chair

Flexible and easy adjustments

Main features:

1. Motorised height, back section and seat section adjustment

2. Small footprint: overall length 140 cm

3. Motorised Trendelenburg position adjustment

The Afia 4060 is an easy to use examination chair that has been developed specifically for gynaecological and urological procedures. It features a two-part top, flexible and easy to use adjustment options and a good level of equipment as standard, such as a neck pillow and paper roll holder. The chairs are available in several upholstery options and colors.

The 4060 features electric height adjustment as well as seat section and back section adjustment with a hand control. The chair can also be used in the Trendelenburg position.

Technical standard features:

Electrical height, back section and seat section adjustment with hand control
Electrical Trendelenburg adjustment
Adjustable heel supports
Gynaecological bowl, includes fixings and adjustment parts
Castors
Paper roll holder
Neck pillow
Multiple upholstery colors and several high-quality upholstery materials available

TECHNICAL DATA

Height adjustment	61 - 98 cm
Upholstery width	59 cm
Upholstery length	122 cm
Back section length	87 cm
Seat section length	31 cm
Back section adjustment	-7 - +70°
Seat section adjustment	0 - 25°
Electrical Trendelenburg adjustment	0 - 7°
Total weight	75 kg
Safe Working Load (SWL)	150 kg
Castors	2 x 65 mm, 2 x 150 mm
Electric system	24V
CE -marking	Yes
Country of Manufacture	Finland

TECHNICAL IMAGES

ACCESSORIES

DOWNLOADS

MATERIAL OPTIONS

Future

Featuring a slightly pearlescent finish, the stylish Future is an environmentally friendly and fire safety tested upholstery material in the Lojer upholstery range. Its antibacterial, antimicrobial and mold-proofing properties make Future an ideal material for demanding applications. The material features cutting-edge coating technology that remains on the surface and does not wear out even when cleaned. At the same time it prevents the growth of bacteria (which causes smells and stains), prolonging the service life of the upholstered parts.

This extremely durable material is 3 to 6 times more durable than traditional faux leather materials (Martindale over 300 000 cycles) and highly resistant to deterioration such as cracking, splitting, and loss of flexibility. It is also waterproof and fade-resistant.

The surface coating, durability and performance of Future upholstery material have been designed specifically for the healthcare industry, where bacteria, abrasions and stains are particularly challenging. The material is easy to clean and must be cleaned frequently. It fulfills REACH chemicals regulation requirements, which proves a high emphasis level of health and environment protection.

Material composition:

Topcoat 81% vinyl
Backing 19% polyester

Colour options

Standard: Silver

Standard: Falls

Standard: Tomato

Standard: Beach

Carbon

Space

Pearl

Titanium

Onyx

Saphire

Lagoon

Pistachio

Plum

Sunrise

Technical features

Cleaning

Suitable disinfectant

Nature

Durable, high quality Nature represents a new generation of environmentally friendly materials. The material is in accordance with the Oeko-Tex standard and therefore does not include any heavy metals or phthalates. Thanks to its biocompatibility (EN ISO 10993-5 + 10) the material is safe for the skin. The new Nature feels very comfortable and warmer on the skin than regular artificial leather. It is especially suitable for medical and physiotherapy products.

Material composition:
